Full Gear Couplings
Sahara Engineers is leading Full Gear Couplings Manufacturer in Ahmedabad and Full Gear Couplings Supplier in India provides Latest and Modern Engineering Machinery.

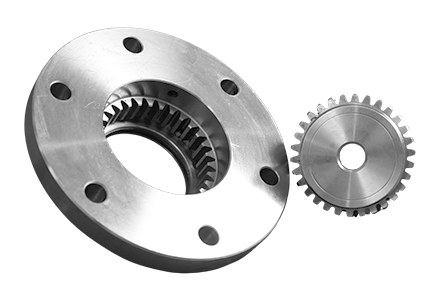

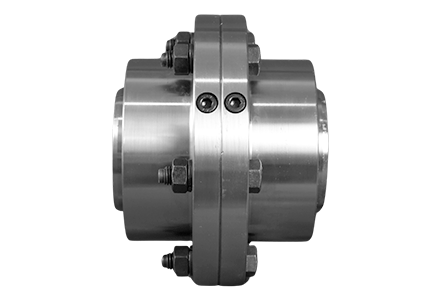

The standard series 100 full gear coupling, the type used on most industrial applications, is the double engagement forged steel coupling. it will compensate for both parallel (offset) shaft misalignment and angular misalignment and has a large end float capacity. Full gear coupling transmits heavy duty loads when selected and applied correctly. standard couplings come with exposed bolts but shrouded bolts beyond fg-110 can be supplied at no extra cost.
The hubs are reversable and the reversed position permits a larger Shaft separation and this finds great application when using tapered shafts as found on most large centrifugal pumps, compressors, generators and steam turbines. These full gear couplings are generally supplied with rough bores and can be supplied with finished bores as well.
- Less backlash
- Compact assembly
- Large bore capacities
- High power to weight ratio
- Accommodates angular, parallel and axial misalignments
- Generally used up to 120° C. Can be used for higher temperature by using proper grade of grease or oil
- Standard full flexible gear coupling type SFG accommodates angular & parallel misalignments or a combination of both as well as axial misalignment (end float). Ideal for all horizontal, close coupled applications including fans, overhead cranes, conveyors, steel & paper mill equipments. One or both the hubs can be easily reversed for more than normal shaft separation applications
Features

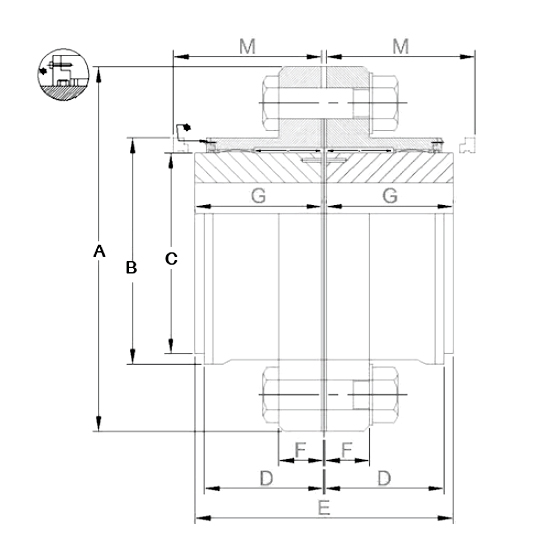

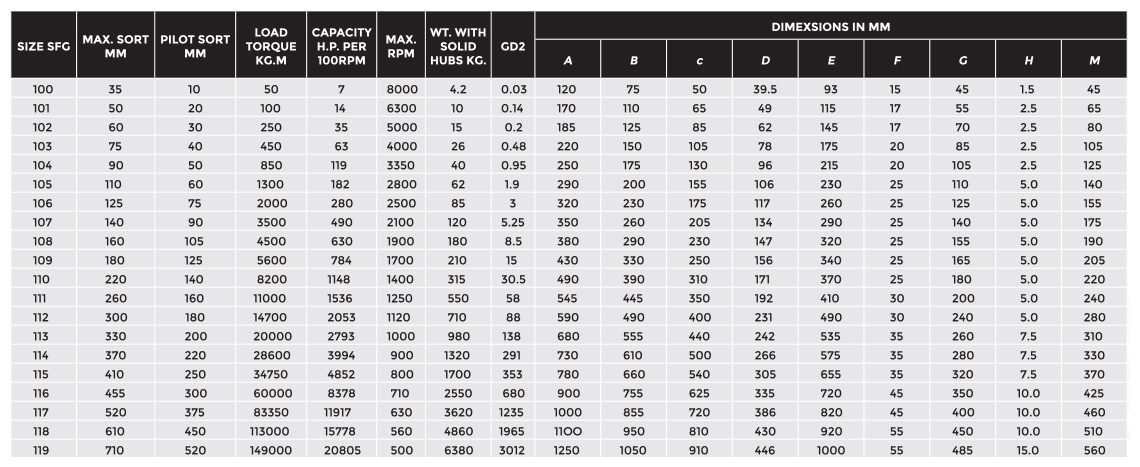

Dimensions & Technical Data
